Aluminum Can Dimensions: Height, Diameter & Volume From 7.5 oz to 32 oz Crowler

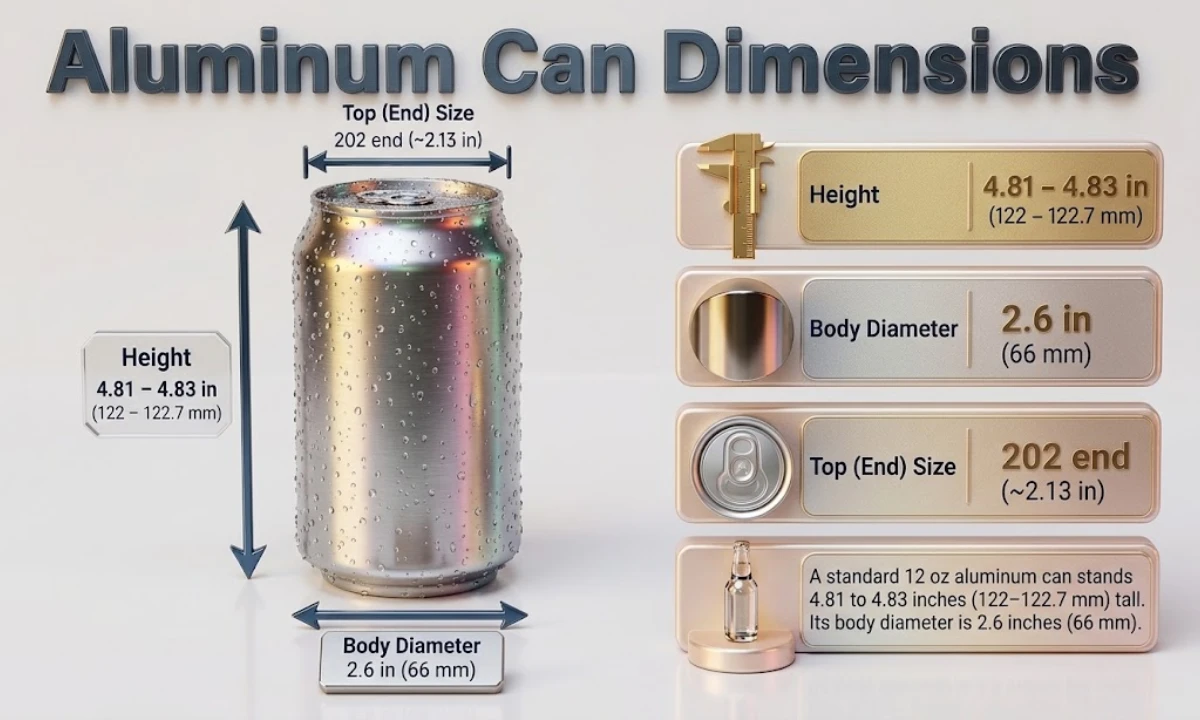

A standard 12 oz aluminum can stands 4.81 to 4.83 inches (122–122.7 mm) tall. Its body diameter is 2.6 inches (66 mm).

Aluminum beverage cans range from 7.5 oz slim cans to 32 oz Crowlers. This guide covers the exact Aluminum Can Dimensions and volume of every standard format used in beer, soda, energy drinks, and specialty beverages.

Standard 12 oz Aluminum Can Specifications

The 12 oz standard can is the universal baseline across the entire US beverage industry — used for Coca-Cola, Pepsi, Budweiser, Coors, and thousands of other brands.

The 202 end refers to the industry-standard lid size. The lid is narrower than the body — creating the tapered neck at the top and bottom of the can. Crown Holdings and Ball Corporation produce the majority of 202 ends used in North America.

The 8.15-inch circumference is the critical dimension for label and artwork design. Full-bleed wrap-around graphics on a 12 oz standard can need exactly 8.15 inches of horizontal art width to complete a seamless 360° label.

Aluminum Can Dimensions by Size

Every standard beverage can size with exact dimensions:

The 12 oz standard, 16 oz Tallboy, and 19.2 oz Stovepipe all share the same 2.60-inch (66 mm) body diameter. Only height increases with volume. The 12 oz Sleek, 24 oz King Can, and 32 oz Crowler each use different body widths.

Standard vs. Sleek 12 oz Can

Both hold 355 mL — but they look and feel completely different. This distinction trips up designers, retailers, and brewers ordering cans for the first time.

The Sleek 12 oz is nearly the same height as a 16 oz Tallboy — but narrower. It was popularized by White Claw, Truly, and premium energy drink brands as a format that communicates a lighter, more premium aesthetic than the standard short can.

A standard 12 oz can and a sleek 12 oz can are not interchangeable on filling lines. Each requires different tooling and lid specifications. Breweries and co-packers must specify which format they need when sourcing packaging.

16 oz Tallboy Can Dimensions

The 16 oz Tallboy is the standard craft beer can — used by the majority of independent breweries in the US. Sierra Nevada, New Belgium, Lagunitas, and thousands of craft brands use this as their primary format.

At the same 2.60-inch diameter as the standard 12 oz can, the Tallboy simply adds 1.36 inches of height to hold the additional 118 mL of volume. Both cans fit the same shelf slots, 6-pack rings, and standard cooler racks.

19.2 oz Stovepipe Can Dimensions

The 19.2 oz Stovepipe is the dominant single-serve convenience store format for high-ABV beers, IPAs, and premium malt beverages. It holds exactly one imperial pint (568 mL) — a selling point in markets familiar with British pint measurements.

The 19.2 oz format is heavily used at sports arenas, music festivals, and stadium concession stands — where a single large-format can generates higher revenue per transaction than a standard 12 oz or 16 oz can.

24 oz King Can / Silo Dimensions

The 24 oz King Can steps up to a wider body diameter — the 307 body standard at approximately 3.07 inches (78 mm). This is a distinct form factor from the standard 2.60-inch family.

Common uses include malt liquors (Steel Reserve, Olde English 800), large-format hard cider, and oversized hard seltzer. The wider body won’t fit in standard cup holders designed for 2.6-inch cans.

32 oz Crowler Dimensions

A Crowler is a machine-sealed aluminum can filled directly from a draft tap at craft breweries and taprooms. Developed by Ball Corporation in 2014, it replaced the glass growler as the preferred to-go format for fresh draft beer.

Crowlers last 2 to 4 weeks refrigerated — shorter than commercially canned beer because taproom seaming equipment doesn’t purge oxygen as thoroughly as industrial canning lines. Drink them fresh.

Aluminum Can Dimensions Size Chart

More Post: Monster Can Dimensions

Questions

What are the dimensions of a standard 12 oz aluminum can?

A standard 12 oz can is 4.81–4.83 inches (122–123 mm) tall with a 2.60-inch (66 mm) body diameter. The lid uses a 202 end (~2.13 inches) and the body circumference is 8.15 inches (207 mm).

What is the diameter of a 12 oz aluminum can?

The body diameter of a 12 oz aluminum can is 2.60 inches (66 mm).

What is the difference between a standard and sleek 12 oz can?

Both hold 355 mL, but a standard 12 oz is 4.83 inches tall and 2.60 inches wide, while a sleek 12 oz is 6.1 inches tall and only 2.25 inches wide. They use different filling lines and are not interchangeable in production.

How tall is a 16 oz aluminum can?

A 16 oz Tallboy is 6.18–6.19 inches (157 mm) tall with the same 2.60-inch (66 mm) diameter as a standard 12 oz can. Only the height increases — the body tooling is identical.

What is the circumference of a standard aluminum can?

The circumference of a standard 12 oz aluminum can is 8.15 inches (207 mm).

How much does an empty aluminum can weigh?

An empty 12 oz aluminum can weighs approximately 14.9 grams (0.5 oz).

What is a 202 end on an aluminum can?

A 202 end is the lid size specification for standard 12 oz and 16 oz aluminum cans. The number refers to the lid diameter — 2 and 2/16 inches (~2.13 inches / 54 mm).
